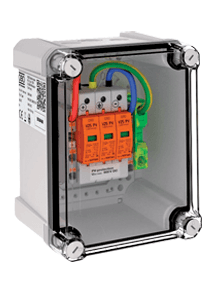

Overvoltage Protection DC Class I+II IP66 - V2

Overvoltage proctection box type 1+2 for photovoltaic systems for connecting 1 string. For DC protection of the inverter.

• Varistor arrester, pluggable, with disconnecting device in fault-resistant Y-circuit according to VDE 0100-712 (50539-12)
• Low DC protection level: < 3.0 kV (Uoc max = 900 V DC)
• 1 protective device with 2 terminals up to 6 mm² pre-installed in the enclosure, up to 41 A DC per terminal
• Polycarbonate enclosure (IP66), UV-resistant for outdoor use, incl. cable gland set and pressure compensation element

If there is a risk of condensation due to wind, ice, temperature or sun, additional measures may be required!
