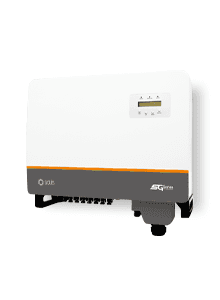

30kW S5 3ph 3MPPT - DC

S5-GC30K - Series 5 Three Phase Grid-Tied Inverter

Product Features:

• Max. efficiency of 98.5%
• Type-II over-voltage surge protection for both DC and AC
• Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
• 32A input per MPPT, 16A input for each PV string
• Maximum AC output power of 33kW
• 3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
• Intelligent monitoring, Smart I-V Curve Diagnosis
• Integrated AFCI (DC arc-fault circuit protection)
• IP66 Rated
• DC reverse-polarity protection
• 5-year standard warranty, extendable to 10 or 20-years.

Register on SolisCloud, to support remote upgrade and control.

SA: NRS-097-2-1 Certified and CoCT Approved.

UK: G99 Certified.

<
