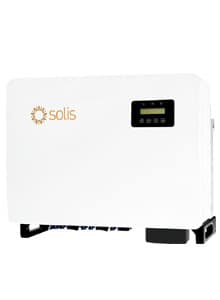

60kW 3-phase 6 MPPT - DC S5

S5-GC60K - Series 5 Three Phase Grid-Tied Inverter

Product Features

• Max. efficiency of 98.7%
• Type-II over-voltage surge protection for both DC and AC
• Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
• Max PV DC Power of 90kW
• 32A input per MPPT, 16A input for each PV string
• Maximum output power of 66kW
• 6 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
• Intelligent monitoring, Smart I-V Curve Diagnosis
• Integrated AFCI (DC arc-fault circuit protection)
• IP66 Rated and C5 Anti-Corrosion Level
• Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
• DC reverse-polarity protection
• Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
• 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

SA:

NRS-097-2-1 Certified

AC Protection Box - ACDB-125A-125A-1-1 - 125A 3PH, with Power Analyser

UK: G99 Certified.

<
